ES CORE

1.ORDERING CODE

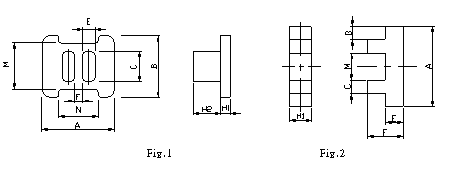

2.SHAPES

3.DIMENSIONS

NO．

PART NO．

Fig．

A

B

C

E

F

M

N

H1

H2

Combinations

1

___ES 8.7

1

8.70±0.10

7.50±0.10

3.70±0.15

1.50±0.10

1.00±0.10

5.60±0.15

4.80±0.15

1.00±0.15

3.00±0.15

2

___ES 9.0

2

9.00±0.25

1.0REF.

2.00REF.

2.00±0.15

4.25±0.15

3.00±0.10

4.00±0.10

IS 9.0

**Other Sizes Are Available Upon Request.
