P CORE
	1.ORDERING CODE

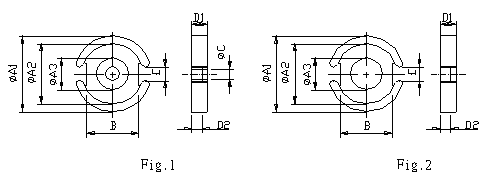

	2.SHAPES
	3.DIMENSIONS
	NO． PART No． Fig． ΦA1 ΦA2 ΦA3 B ΦC D1 D2 E 1 ___P 6/7 2 5.48±0.15 4.50±0.10 2.42±0.10 4.00±0.50 3.58±0.15 2.83±0.15 1.50±0.30 2 ___P 11/7 1 11.10±0.20 9.20±0.20 4.60±0.10 7.45±0.25 2.05±0.10 3.50±0.10 2.30±0.10 2.20±0.20 3 ___P 14/8 2 14.00±0.20 11.80±0.20 5.90±0.10 9.50±0.25 4.16±0.10 2.90±0.10 3.10±0.20
	****Other Sizes Are Available Upon Request.
