Uu CORE

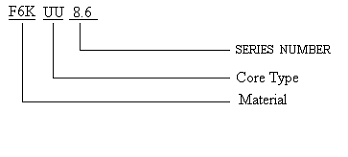

	1.ORDERING CODE
	2.SHAPES
	3.DIMENSIONS
	NO． PART NO． A B E F H I Combinations 1 ___UU 6.35 6.35±0.10 1.45±0.10 1.30±0.10 6.35±0.15 0.35±0.10 3.75±0.10 IS6.35 2 ___UU 8.6 8.60±0.20 6.40±0.20 2.20±0.15 3.60±0.20 4.20±0.20 4.20±0.20 3 ___UU 10.5 10.50±0.20 7.75±0.20 2.50REF. 5.00±0.15 5.00±0.50 5.30±0.20
	****Other Sizes Are Available Upon Request.
